Studio Acoustical Systems

Studio Acoustical Systems

Streamline acoustical tuning of your studio mix room so you can get back to producing with precision. Includes a pre-engineered package of absorbers, diffusers, and panels for all frequencies. Select your room size and quality/budget level.

Spoiler alert – that new Croatian hand-built condenser mic won’t help you make better recordings. The difference between you and hit-making professionals is less about the gear and more about what you hear.It affects every decision you make when making music. When you decide to join the pros you’ll need science, experience and a balanced system plan to make your mix room sing!  These affordable pre-engineered acoustical component collections are specifically for mixing room setups. They are recommended by room size.  After being involved in making hundreds of music making spaces sonically accurate we know what works, and what doesn’t.

You’ll instantly begin to trust what you hear. Mixes will translate. The process of getting everything to set in the mix will be way easier. Your speakers will love you. Send royalties to Sonitus USA and we’ll see you at the Grammy’s!

The diagram to the left offers general placement locations for the recommended collection of absorbers, diffusors, clouds and bass traps. Click on the illustrations to make them larger and print them out as necessary for reference during installation of your acoustical system components.

Wait. Are you building a tracking room?  That’s different from a mix room. Stop. Call 415-883-8053 for a plan. Now practice more.

Home Cinema Component Options + Details and Installation ManualsInstructions
Want to build a custom system? Call us at +1-800-497-2087
Quality Level
Room Size
Package Price:
$ 1,499.00
FREE SHIPPING
Unit price:
Sold in pkg. of:
Components Included in Package:.
No items found.

Component Details

Choose a quality level to view possible system components. Not all components included in all room sizes.
Standard Quality Level
Download Standard Level Installation Manual

Standard quality level components are designed to meet our basic requirements for effective acoustical room treatment at the lowest available budget level.

Decotrap Quad
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Low frequency absorption – 60Hz to 500Hz
  • High density foam core for high absorption coefficients [See Test Report]
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decotrap Quad absorbers are decorative low-frequency damped membrane absorbers that not only look great but also filter out damping from the mid and high-frequency spectrum. When corner-mounted, Decotraps treat a range of frequencies starting down at 60Hz, and up to 500Hz. They feature a back layer of 25cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single or multiple units in front and back corners of your room.

Frequency Range: 60 to 500Hz with corner placement

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 9.7” (60cm x60cm x 25cm)

Coverage Area: 3.9 sq. ft.

Weight: 6 lbs.

Master Pack: 2 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: White

Special OrderColors: Black, Wine Red, Walnut,Mahogany, Poplar (light maple)

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 2 Units
• 201-300 sq. ft. = 4 Units
• 301-400 sq. ft. = 6 Units
• 401-500 sq. ft. = 8 Units
• 501-600 sq. ft. = 12 Units
• 601-700 sq. ft. = 16 Units

Decotrap Quad Acoustical Bass Trap (2 Pack)
Decosorber Quad 8
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Midband absorption – 200Hz to 3kHz
  • High density foam core for high absorption coefficients
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decosorber Quad absorbers are decorative mid-frequency damped membrane absorbers that not only look great, but also compensate the common effects of excessive high-frequency damping. Decosorbers treat a range of frequencies starting down at 200Hz, and smoothly tapering down all the way to 3kHz. They feature a back layer of 8cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single units on walls and ceilings or as a pattern in groups.

Frequency Range: 200Hz to 3kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 3.125” (60cm x60cm x 8cm)

Coverage Area: 3.9 sq. ft.

Weight: 3 lbs.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: Walnut, Ebony (black) and Poplar(light maple)

Special Order Colors: Mahogany, White, Wine Red

Here's how many units you'll need based on your room size:

  • 100-200 sq. ft. = 12 each
  • 201-300 sq. ft. = 14 each
  • 301-400 sq. ft. = 20 each
  • 401-500 sq. ft. = 24 each
  • 501-600 sq. ft. = 26 each
  • 601-700 sq. ft. = 30 each

Decosorber Quad 8 Acoustical Absorber (6 Pack)

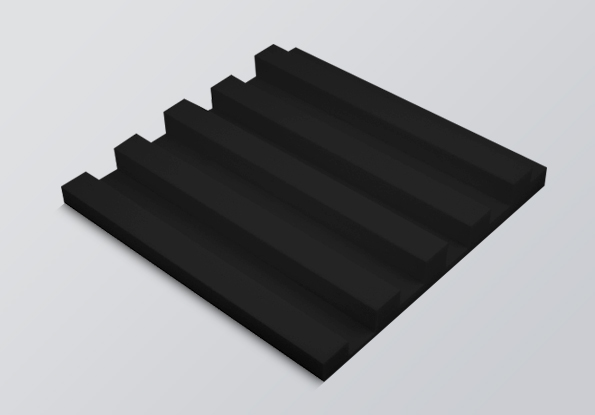

Fourfuser
  • Ridge-and-channel series 2D Diffuser
  • Professional Look
  • Advanced engineering
  • Hard expanded polystyrene with acrylic paint finish for effective scattering
  • Available in 2 colors
  • Easy installation with optional SMMS kit (4 magnets).
  • Built to last

Not just another molded plastic deflector panel, Fourfusor is an 8cm deep 2D diffuser made of hardened expanded polystyrene with acrylic paint finish sculpted in a series of ridge and channel shapes for effective planar scattering. The unique shape converts incoming sound waves into a 2-dimensional plane for a more enveloping sound-field. This very affordable module eliminates slap echoes while maintaining mid and high-frequency energy in the room. Fourfuser scatters a wide range of frequencies, starting at 600Hz, and going all the way up to 4kHz. They are part of a balanced treatment approach when used with 3D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Easy installation with spray glue, construction adhesives, or the optional magnetic installation kit.

Frequency Range: 600Hz to 4kHz

Material: Hard expandedpolystyrene with acrylic paint finish

Size: 23.6” x 23.6” x 3.25” (60cm x60cm x 8cm)

Colors: Black, Gray, White

Coverage Area: 3.9 sq. ft.

Weight: 1 lb.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Special Order Colors: White

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

Fourfuser Acoustical Diffuser (6 Pack)
Canvas Acoustical Panels
  • Elegant European design
  • Fabric-covered panel for a clean installed look.
  • Advanced engineering
  • High density foam core with effective absorption coefficient (a=0.9) (See Test Report)
  • Available in 2 colors
  • Easy installation
  • Built to last

Not just another foam or fiberglass panel, Canvas is a 6cm deep absorber made of high-performance polyester acoustic foam with a smooth fabric finish layer. No itchy, scratchy compressed fiberglass here! Simply distribute a set of Canvas panels around your walls, following the recommendations in the “How Many” tab. They are also great as “clouds” for soaking up those pesky first reflections from your ceiling. They feature a wooden internal frame with cross support in the middle so it won’t sag when hung from the ceiling. They absorb a wide range of frequencies, starting down at 400Hz, and going all the way up to 20kHz.

Frequency Range: 200Hz to 20kHz (as cloud with 1” airgap)

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min with fabric cover.

Size: 23.6” x 47.3” x 2.6” (60cm x60cm x 6cm)

Colors: Black, White

Coverage Area:7.8 sq. ft.

Weight:11 lbs.

Master Pack: 2 Units

Mounting: Built-in Clips or separate hanging eyebolts

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 5 Units
• 201-300 sq. ft. = 6 Units
• 301-400 sq. ft. = 8 Units
• 401-500 sq. ft. = 10 Units
• 501-600 sq. ft. = 11 Units
• 601-700 sq. ft. = 12 Units

Canvas Acoustical Absorber Panels (2 Pack)
Quadsorber 8
  • Channel series Absorber
  • Professional Look
  • Advanced engineering
  • High density foam core with effective absorption coefficient (a=0.9 above 1kHz) (See Test Report)
  • Charcoal Gray color
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Not just another foam or fiberglass panel, Quadsorber 8 is an 8cm deep absorber made of high-performance polyester acoustic foam sculpted in a series of channel shapes. No itchy, scratchy compressed fiberglass here! Quadsorbers will look techie and professional on your walls. They can be used as single units in a multi-component array or as a pattern in groups for vocal or isolation booths, etc. They absorb a wide range of frequencies, starting at 315Hz, and going all the way up to 20kHz. Easy installation with spray glue, construction adhesives, or the optional magnetic installation kit.

Frequency Range: 315Hz to 20kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 3.25” (60cm x60cm x 8cm)

Color: Charcoal Gray

Coverage Area:3.9 sq. ft.

Weight:1 lb.

Master Pack: 8 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 16 Units
• 401-500 sq. ft. = 20 Units
• 501-600 sq. ft. = 22 Units
• 601-700 sq. ft. = 24 Units

Quadsorber 8 Acoustical Absorber (8 Pack)
Sharpfuser
  • Wedge series 2D Diffuser
  • Professional Look
  • Advanced engineering
  • Hard expanded polystyrene with acrylic paint finish for effective scattering
  • Available in 3 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Not just another molded plastic deflector panel, Sharpfuser is an 8cm deep 2D diffuser made of hardened expanded polystyrene with acrylic paint finish sculpted in a series of wedge shapes for effective planar scattering. The unique shape converts incoming sound waves into a 2-dimensional plane, for a more enveloping sound-field. This very affordable module eliminates slap echoes, while maintaining mid and high-frequency energy in the room. Sharpfusers will look techie and professional on your walls. They scatter a wide range of frequencies, starting at 600Hz, and going all the way up to 4kHz. They are part of a balanced treatment approach when used with 3D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Easy installation with spray glue, construction adhesives, or the optional magnetic installation kit.

Frequency Range: 600Hz to 4kHz

Material: Hard expanded polystyrene with acrylic paint finish

Size: 23.6” x 23.6” x 3.25” (60cm x60cm x 8cm)

Colors: Black

Coverage Area: 3.9 sq. ft.

Weight: 1 lb.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Special Order Colors: White, Gray

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

Sharpfuser Acoustical Diffuser (6 Pack)
Premium Quality Systems
Download Premium Installation Manual

Premium Quality is a cut above our standard quality system and includes more sophisticated components like the Bigfusor I diffusers and Leviter 8 absorbers.

Bigfuser I
  • Block-and-cavity series 3D Diffuser
  • Professional Look
  • Advanced engineering
  • Hard expanded polystyrene with acrylic paint finish for effective scattering
  • Available in 3 colors
  • Easy installation with optional SMMS kit (4 magnets).
  • Built to last

Not just another molded plastic deflector panel, Bigfuser I is a 16cm deep 3D diffuser made of hardened expanded polystyrene with acrylic paint finish sculpted in a series of block and cavity shapes for effective hemispherical scattering. The unique shape converts incoming sound waves into 3-dimensional space for a more enveloping sound-field. This very affordable module eliminates slap echoes while maintaining mid and high-frequency energy in the room. Bigfusers scatter a wide range of frequencies, starting at 350Hz, and going all the way up to 6kHz. They are part of a balanced treatment approach when used with 2D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Easy installation with spray glue, construction adhesives, or the optional magnetic installation kit.

Frequency Range: 600Hz to 4kHz

Material: Hard expandedpolystyrene with acrylic paint finish

Size: 23.6” x 23.6” x 6.25” (60cm x60cm x 16cm)

Colors: Black,

Coverage Area: 3.9 sq. ft.

Weight: 2 lb.

Master Pack: 3 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Special Order Colors: Gray, White

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

Bigfuser I Acoustical Diffuser (3 Pack)
Decotrap Quad
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Low frequency absorption – 60Hz to 500Hz
  • High density foam core for high absorption coefficients [See Test Report]
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decotrap Quad absorbers are decorative low-frequency damped membrane absorbers that not only look great but also filter out damping from the mid and high-frequency spectrum. When corner-mounted, Decotraps treat a range of frequencies starting down at 60Hz, and up to 500Hz. They feature a back layer of 25cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single or multiple units in front and back corners of your room.

Frequency Range: 60 to 500Hz with corner placement

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 9.7” (60cm x60cm x 25cm)

Coverage Area: 3.9 sq. ft.

Weight: 6 lbs.

Master Pack: 2 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: White

Special OrderColors: Black, Wine Red, Walnut,Mahogany, Poplar (light maple)

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 2 Units
• 201-300 sq. ft. = 4 Units
• 301-400 sq. ft. = 6 Units
• 401-500 sq. ft. = 8 Units
• 501-600 sq. ft. = 12 Units
• 601-700 sq. ft. = 16 Units

Decotrap Quad Acoustical Bass Trap (2 Pack)
Legato 8
  • Elegant European design
  • Curved shape for tasteful interiors
  • Advanced engineering
  • Wideband absorption – 250Hz to 20kHz
  • High density foam core with effective absorption coefficient (a=0.9) [See Test Report]
  • Available in 5 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Not just another foam or fiberglass panel, Legato 8 is an 8cm deep absorber made of high-performance polyester acoustic foam with a smooth velvet finish layer. No itchy, scratchy compressed fiberglass here! Legato's curved surface naturally blends into your walls for a cleaner look. Legato 8 absorbs a wide range of frequencies, starting down at 250Hz, and going all the way up to 20kHz.

Frequency Range: 250Hz to 20kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 3.25” (60cm x60cm x 8cm)

Colors: Black, White, Red, Blue, Gray

Coverage Area: 3.9 sq. ft.

Weight: 1.5 lbs.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Here's how many units you'll need based on your room size:

  • 100-200 sq. ft. = 10 each
  • 201-300 sq. ft. = 12 each
  • 301-400 sq. ft. = 16 each
  • 401-500 sq. ft. = 20 each
  • 501-600 sq. ft. = 22 each
  • 601-700 sq. ft. = 24 each

Legato 8 Acoustical Absorber (6 Pack)
Decosorber Quad 8
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Midband absorption – 200Hz to 3kHz
  • High density foam core for high absorption coefficients
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decosorber Quad absorbers are decorative mid-frequency damped membrane absorbers that not only look great, but also compensate the common effects of excessive high-frequency damping. Decosorbers treat a range of frequencies starting down at 200Hz, and smoothly tapering down all the way to 3kHz. They feature a back layer of 8cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single units on walls and ceilings or as a pattern in groups.

Frequency Range: 200Hz to 3kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 3.125” (60cm x60cm x 8cm)

Coverage Area: 3.9 sq. ft.

Weight: 3 lbs.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: Walnut, Ebony (black) and Poplar(light maple)

Special Order Colors: Mahogany, White, Wine Red

Here's how many units you'll need based on your room size:

  • 100-200 sq. ft. = 12 each
  • 201-300 sq. ft. = 14 each
  • 301-400 sq. ft. = 20 each
  • 401-500 sq. ft. = 24 each
  • 501-600 sq. ft. = 26 each
  • 601-700 sq. ft. = 30 each

Decosorber Quad 8 Acoustical Absorber (6 Pack)
Fourfuser
  • Ridge-and-channel series 2D Diffuser
  • Professional Look
  • Advanced engineering
  • Hard expanded polystyrene with acrylic paint finish for effective scattering
  • Available in 2 colors
  • Easy installation with optional SMMS kit (4 magnets).
  • Built to last

Not just another molded plastic deflector panel, Fourfusor is an 8cm deep 2D diffuser made of hardened expanded polystyrene with acrylic paint finish sculpted in a series of ridge and channel shapes for effective planar scattering. The unique shape converts incoming sound waves into a 2-dimensional plane for a more enveloping sound-field. This very affordable module eliminates slap echoes while maintaining mid and high-frequency energy in the room. Fourfuser scatters a wide range of frequencies, starting at 600Hz, and going all the way up to 4kHz. They are part of a balanced treatment approach when used with 3D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Easy installation with spray glue, construction adhesives, or the optional magnetic installation kit.

Frequency Range: 600Hz to 4kHz

Material: Hard expandedpolystyrene with acrylic paint finish

Size: 23.6” x 23.6” x 3.25” (60cm x60cm x 8cm)

Colors: Black, Gray, White

Coverage Area: 3.9 sq. ft.

Weight: 1 lb.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Special Order Colors: White

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

Fourfuser Acoustical Diffuser (6 Pack)
Canvas Acoustical Panels
  • Elegant European design
  • Fabric-covered panel for a clean installed look.
  • Advanced engineering
  • High density foam core with effective absorption coefficient (a=0.9) (See Test Report)
  • Available in 2 colors
  • Easy installation
  • Built to last

Not just another foam or fiberglass panel, Canvas is a 6cm deep absorber made of high-performance polyester acoustic foam with a smooth fabric finish layer. No itchy, scratchy compressed fiberglass here! Simply distribute a set of Canvas panels around your walls, following the recommendations in the “How Many” tab. They are also great as “clouds” for soaking up those pesky first reflections from your ceiling. They feature a wooden internal frame with cross support in the middle so it won’t sag when hung from the ceiling. They absorb a wide range of frequencies, starting down at 400Hz, and going all the way up to 20kHz.

Frequency Range: 200Hz to 20kHz (as cloud with 1” airgap)

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min with fabric cover.

Size: 23.6” x 47.3” x 2.6” (60cm x60cm x 6cm)

Colors: Black, White

Coverage Area:7.8 sq. ft.

Weight:11 lbs.

Master Pack: 2 Units

Mounting: Built-in Clips or separate hanging eyebolts

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 5 Units
• 201-300 sq. ft. = 6 Units
• 301-400 sq. ft. = 8 Units
• 401-500 sq. ft. = 10 Units
• 501-600 sq. ft. = 11 Units
• 601-700 sq. ft. = 12 Units

Canvas Acoustical Absorber Panels (2 Pack)
Ultra Quality Systems
Download Ultra Installation Manual

Pricier yes, but our Ultra Quality Systems include components that will deliver the utmost sound quality with unique aesthetics too.

Bigfuser II Solid
  • Block-and-cavity series 3D Diffuser
  • Elegant curved shaping
  • Professional Look
  • Advanced engineering
  • Solid oak construction for effective scattering
  • Available in 4 colors
  • Easy installation with integrated keyhole mounts.
  • Built to last

Bigfuser II Solid is clearly a showstopper. Weighing in at 49 lbs and with a 6 ¼” depth, this solid wood 3D diffuser is a series of block and cavity shapes for effective broadband hemispherical scattering. The fascia is curved for easier integration to the décor. This unique shape converts incoming sound waves into 3-dimensional space for a more enveloping sound-field. Bigfuser II eliminates slap echoes while maintaining mid and high-frequency energy in the room. Bigfusers scatter a wide range of frequencies, starting at 350Hz, and going all the way up to 6kHz. They are part of a balanced treatment approach when used with 2D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Four keyhole mounts on the backplane of the module make for an easy integrated installation by using properly rated wall fasteners.

Frequency Range: 600Hz to 4kHz

Material: Solid Oak

Size: 23.6” x 23.6” x 6.25” (60cm x60cm x 16cm)

Colors: Oak, Black, White,Mahogany

Coverage Area: 3.9 sq. ft.

Weight: 49 lb.

Master Pack: 1 Unit

Mounting: 4 Keyholes for mounting screws

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

Bigfuser II Solid Acoustical Diffuser (1 Pack)
6 Strip
  • Slat diffraction series 2D Diffuser and Dense Foam absorber – All in One.
  • High-end design
  • Advanced engineering
  • Available in 2 colors
  • Easy installation with built-in brackets
  • Built to last

Not just another simple diffuser panel, 6-Strip is a 7cm deep combination 2D slat diffuser and dense foam absorber. It combines two actions in one and converts incoming sound waves into a 2-dimensional plane for a more enveloping sound-field. This module eliminates slap echoes while maintaining mid and high-frequency energy in the room. 6-Strip modules scatter a range of frequencies from 1kHz to 6kHz. They are part of a balanced treatment approach when used with 3D diffusers, absorbers, and Decosorbers in a total room acoustic plan. Easy installation with the integrated clips and wall brackets.

Frequency Range: 2D Scattering from 1kHz to 6kHz, and Absorption from 250Hz to 3kHz

Material: Solid woodenclosure and slats with USAP – Polyester acoustic foam - fire resistantFMVSS 302<100mm/min

Size: 23.6” x 23.6” x 2.75” (60cm x60cm x 7cm)

Colors: Oak

Coverage Area: 3.9 sq. ft.

Weight: 8.5 lb.

Master Pack: 2 Units

Mounting: Integrated clips and wall cleatbrackets.

Special Order Color: Mahogany

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 10 Units
• 201-300 sq. ft. = 12 Units
• 301-400 sq. ft. = 14 Units
• 401-500 sq. ft. = 16 Units
• 501-600 sq. ft. = 18 Units
• 601-700 sq. ft. = 22 Units

6 Strip Acoustical Diffuser (2 Pack)
Decotrap Quad
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Low frequency absorption – 60Hz to 500Hz
  • High density foam core for high absorption coefficients [See Test Report]
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decotrap Quad absorbers are decorative low-frequency damped membrane absorbers that not only look great but also filter out damping from the mid and high-frequency spectrum. When corner-mounted, Decotraps treat a range of frequencies starting down at 60Hz, and up to 500Hz. They feature a back layer of 25cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single or multiple units in front and back corners of your room.

Frequency Range: 60 to 500Hz with corner placement

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 9.7” (60cm x60cm x 25cm)

Coverage Area: 3.9 sq. ft.

Weight: 6 lbs.

Master Pack: 2 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: White

Special OrderColors: Black, Wine Red, Walnut,Mahogany, Poplar (light maple)

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 2 Units
• 201-300 sq. ft. = 4 Units
• 301-400 sq. ft. = 6 Units
• 401-500 sq. ft. = 8 Units
• 501-600 sq. ft. = 12 Units
• 601-700 sq. ft. = 16 Units

Decotrap Quad Acoustical Bass Trap (2 Pack)
Legato 12
  • Elegant European design
  • Curved shape for tasteful interiors
  • Advanced engineering
  • Ultra-wideband absorption – 160Hz to 20kHz
  • High density foam core with effective absorption coefficient (a=0.95) [See Test Report]
  • Available in 5 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Not just another foam or fiberglass panel, Legato 12 is a 12cm deep absorber made of high-performance polyester acoustic foam with a smooth velvet finish layer. No itchy, scratchy compressed fiberglass here! Legato's curved surface naturally blends into your walls for a cleaner look. Legato 12 absorbs a wide range of frequencies, starting down at 160Hz, and going all the way up to 20kHz.

Frequency Range: 160Hz to 20kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 4.7” (60cm x60cm x 12cm)

Colors: Black, White, Red, Blue, Gray

Coverage Area: 3.9 sq. ft.

Weight: 2 lbs.

Master Pack: 4 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Here's how many units you'll need based on your room size:

  • 100-200 sq. ft. = 10 each
  • 201-300 sq. ft. = 12 each
  • 301-400 sq. ft. = 10 each
  • 401-500 sq. ft. = 16 each
  • 501-600 sq. ft. = 20 each
  • 601-700 sq. ft. = 22 each
Legato 12 Acoustical Absorber (4 Pack)
Decosorber Quad 8
  • Elegant European design
  • Sculptured wood finish for tasteful interiors
  • Advanced engineering
  • Midband absorption – 200Hz to 3kHz
  • High density foam core for high absorption coefficients
  • Available in 6 colors
  • Easy installation with optional SMMS kit (4 magnets)
  • Built to last

Decosorber Quad absorbers are decorative mid-frequency damped membrane absorbers that not only look great, but also compensate the common effects of excessive high-frequency damping. Decosorbers treat a range of frequencies starting down at 200Hz, and smoothly tapering down all the way to 3kHz. They feature a back layer of 8cm USAP Polyester foam finished with black velvet then covered with a 4mm poplar plywood plate that is available in different wood colors with a semi-gloss finish. You won’t need to worry about that itchy-scratchy feeling from fiberglass panels. They can be used as single units on walls and ceilings or as a pattern in groups.

Frequency Range: 200Hz to 3kHz

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min

Size: 23.6” x 23.6” x 3.125” (60cm x60cm x 8cm)

Coverage Area: 3.9 sq. ft.

Weight: 3 lbs.

Master Pack: 6 Units

Mounting: Construction Adhesive or optional SMMS kit (4 magnets)

Colors: Walnut, Ebony (black) and Poplar(light maple)

Special Order Colors: Mahogany, White, Wine Red

Here's how many units you'll need based on your room size:

  • 100-200 sq. ft. = 12 each
  • 201-300 sq. ft. = 14 each
  • 301-400 sq. ft. = 20 each
  • 401-500 sq. ft. = 24 each
  • 501-600 sq. ft. = 26 each
  • 601-700 sq. ft. = 30 each

Decosorber Quad 8 Acoustical Absorber (6 Pack)
Canvas Acoustical Panels
  • Elegant European design
  • Fabric-covered panel for a clean installed look.
  • Advanced engineering
  • High density foam core with effective absorption coefficient (a=0.9) (See Test Report)
  • Available in 2 colors
  • Easy installation
  • Built to last

Not just another foam or fiberglass panel, Canvas is a 6cm deep absorber made of high-performance polyester acoustic foam with a smooth fabric finish layer. No itchy, scratchy compressed fiberglass here! Simply distribute a set of Canvas panels around your walls, following the recommendations in the “How Many” tab. They are also great as “clouds” for soaking up those pesky first reflections from your ceiling. They feature a wooden internal frame with cross support in the middle so it won’t sag when hung from the ceiling. They absorb a wide range of frequencies, starting down at 400Hz, and going all the way up to 20kHz.

Frequency Range: 200Hz to 20kHz (as cloud with 1” airgap)

Material: USAP - Unique Sonitus Acoustic Polyester- fire resistant FMVSS 302 <100mm/min with fabric cover.

Size: 23.6” x 47.3” x 2.6” (60cm x60cm x 6cm)

Colors: Black, White

Coverage Area:7.8 sq. ft.

Weight:11 lbs.

Master Pack: 2 Units

Mounting: Built-in Clips or separate hanging eyebolts

Here's how many units you'll need based on your room size:

• 100-200 sq. ft. = 5 Units
• 201-300 sq. ft. = 6 Units
• 301-400 sq. ft. = 8 Units
• 401-500 sq. ft. = 10 Units
• 501-600 sq. ft. = 11 Units
• 601-700 sq. ft. = 12 Units

Canvas Acoustical Absorber Panels (2 Pack)
How to Best Measure Your Kick Drum
X
